Sunday, March 20, 2016

Progress continues...


stainless rods in forge for the binding of the heart

hammered forms out the back of the forge

hammered via trip hammer and then sanded
and polished..

More progress to a cemetery monument ....

starting with the post...
add one at a time and do some straightening as we go...
Fiery process..
another leaf
all 7!

Progress of a cemetery monument ...

the scale of each heart leaf is 3' square to cut in 1/4" stainless
each piece in the forge

and then to the trip hammer...


nicely misshapen after forge and hammer

a first try for attachment to see what things look like!
after straightening warped sheets .... sanding and polishing
lots of marks
getting closer

Progress of a cemetery monument


the site

the adjacent and related monument...

the idea for the monument from the image and meaning of the Sacred Heart
and a model for the idea...


a drawing of a base made of panels of limestone












































































Saturday, March 8, 2014

Progress of a Conservatory

                                                       The beginning phases of a project
                                                    to build a structural steel conservatory
                                                              under an existing roof!


                                                      We replaced the original columns
                                                  by jacking the roof up and putting in
                                            these large square columns with floating feet.



                                               between each column we built double doors
                                                 with arched transom and panels for glass





                                                  panels and doors on site ready to install

                                             we designed a mechanism for installing on top
                                       of the stone floor so we could weld the sections in place

                                                           the install plates in action



                                 section at a time - we lift them in place by hand, align, and weld






                                                     almost finished and doors working!



                                                                       project two begins -
                                            to patinate the steel to match the copper roof



                                              working with products from Sculpt Nouveau....
                                            we begin with two coats of primer on the structure








                                                                we caulk all seams
                                          for air tight future environment in the Conservatory




                                                              we begin the patina process
                                                              needing just the right mix
                                                                of light and temperature


                                                              the patina well under way
                                                   working with a true chemical reaction
                                                   and protecting the steel at the same time


                                                     creating the similar texture of verdi gris
                                                                   seen on the roof above




                                                                           finished!
                                                   a picture of the whole yet to be added!












Monday, March 3, 2014

small gate with a cathedral in mind part 2





                                          a ton of scrolls to be made



                                                      using a jig to make them uniform





                                                           flattening on the anvil



                                                                one C scroll complete



                                                             metalwork almost finished


                                              hanging the raw steel gate to check all's well
                                               before applying finish to surface

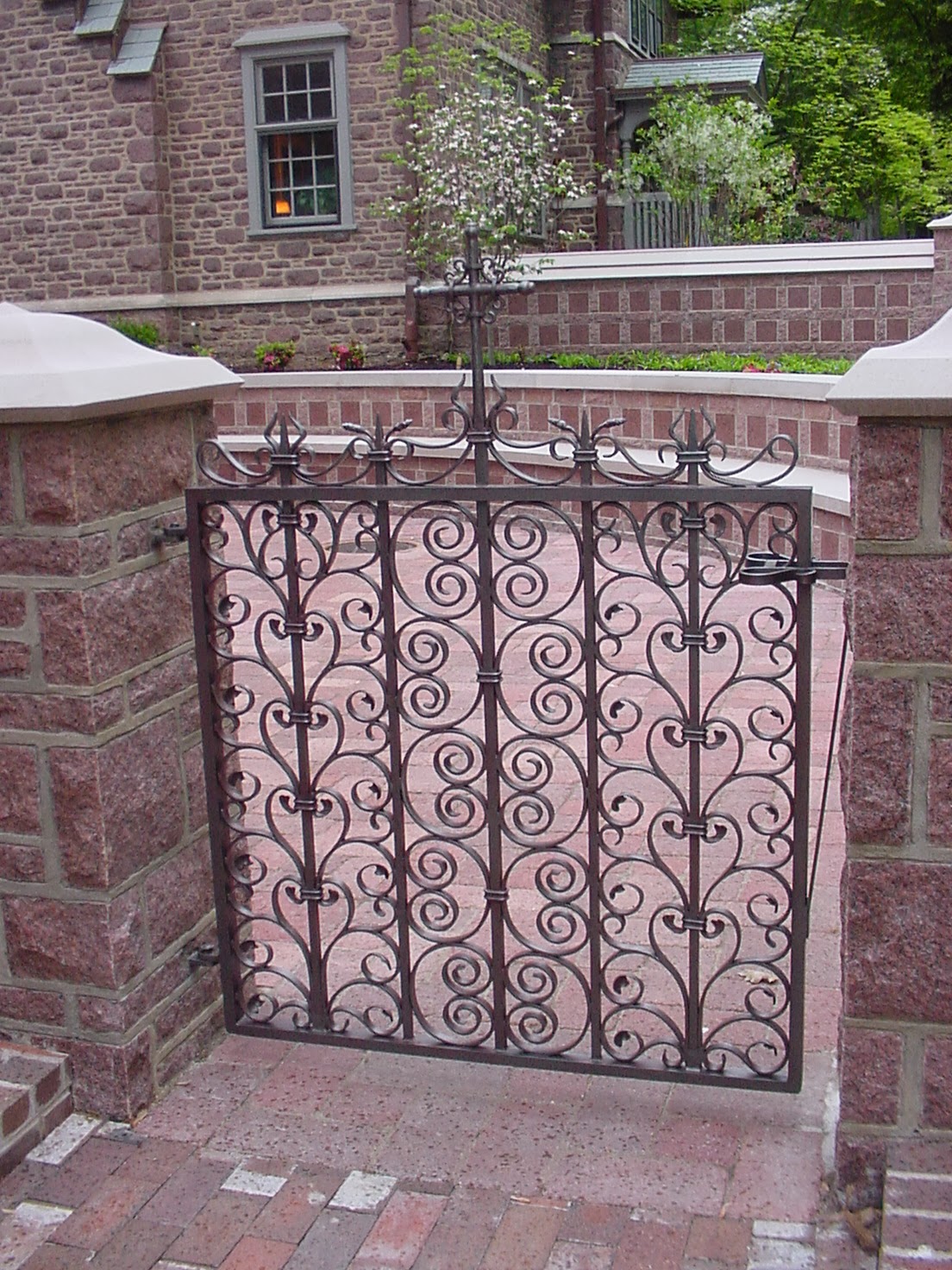

                                                               the final installation!


                                     with a tough metal coating - darkened silver with red tones
